THE Elevator Emergency LightING SOLUTION

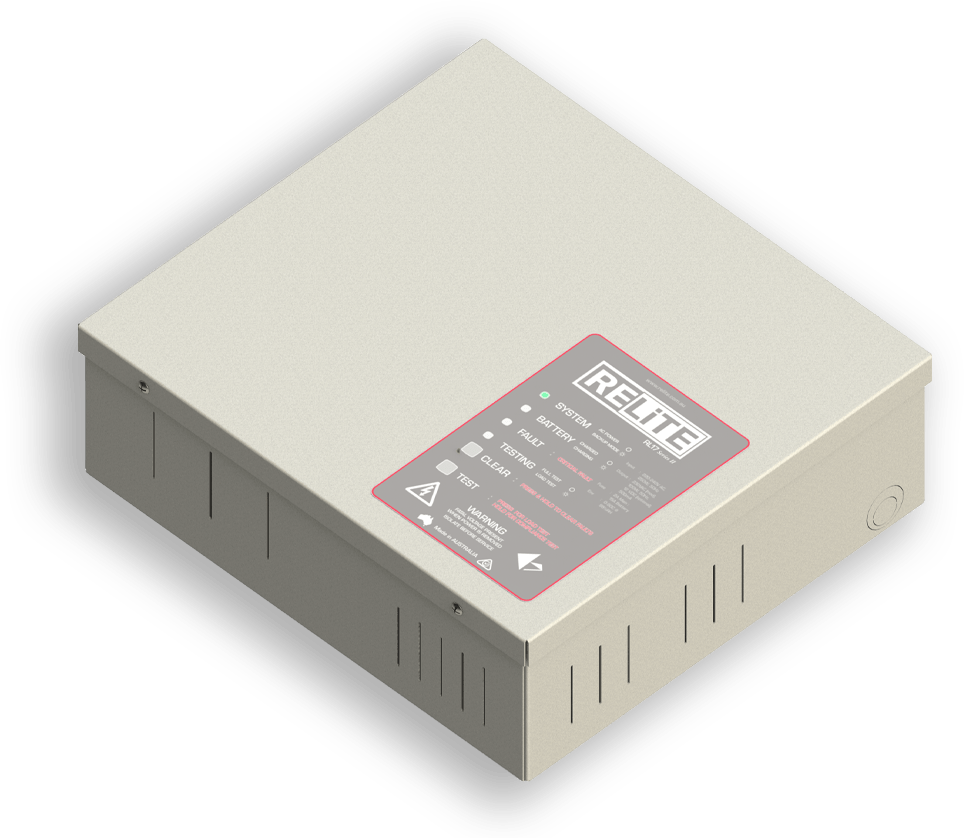

Relite Universal Elevator Emergency Light Kit

Designed & manufactured in Australia

Suitable for residential, commercial and industrial elevators.

When power fails, RELiTE your elevator with our universal elevator lighting solution, manufactured to the highest certification standards. With enhanced safety features, intelligent quick charging and automated testing, RELiTE will ensure code compliant operation for your elevators.


Read full list of features here.

DOWNLOAD OPERATION MANUAL
car Yellow

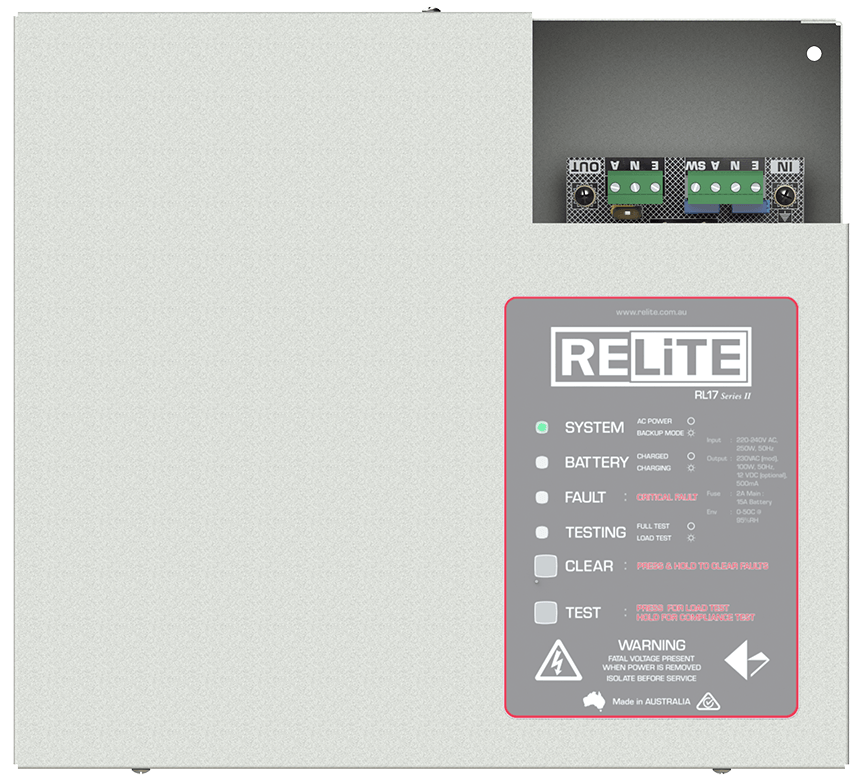

Features

  • 100W Output Power

    The output power of RELiTE is rated up to 100W, however we recommend a conservative electrical load limit of 60W to ensure backup run times of 2 hours and a minimum of 3 years of code compliant operation.

  • Lighting Control

    A switched active input allows for control/override of lighting during normal operation.

  • Automated Testing

    The automated test mode may conduct regular load tests and an occasional compliance test.

  • Eco Mode

    The eco mode may be enabled which automatically controls the light output based on detected movement.


    To assist with installation, a breakout module is available which allows wiring of emergency and normal car lighting into RELiTE.

  • Intelligent Charger

    The intelligent quick charger employs a 4 stage charging cycle to ensure quick charging, whilst prolonging the life of the battery.


    A redundant charger monitor ensures that the battery will never be overcharged due to a system failure.

  • Enhanced Safety and RCD Protection

    An RCD is incorporated into the device to protect the emergency light circuit from ground faults.


    All critical components are UL certified to guarantee safety and reliability.


    The design of the ReLite device has carefully incorporated the relevant requirements from all of the following standards:

    • AS 1735.2-2001 Lift Code Saftey Rules
    • EN 81-20:2014 Saftey Rules
    • EN 12016:2004  E.M.C. Standard for Lifts
    • AS/NZS 61000.6.3:2012  Electromagnetic Compatibility
    • AS 62040.1.2-2003 Uninterruptible Power Systems
    • AS 4044-1992  Battery Charger for Stationary Batteries
    • AS/NZS 3820:2009 Low Voltage Electrical Equipment Safety
    • AS 2293.1-2005 Emergency Escape Lighting and Exit Signs

  • Certification and Testing

    The device has been tested for immunity against the most stringent applicable standard (EN 12016).


    The device has been certified against AS/NZS 61000.6. 3:2012 to ensure emissions levels are acceptable for use in industrial, commercial and residential areas.


    The ReLite unit has also been subject to rigorous inhouse testing regimes to ensure that the system can support continuous operation and battery health for the life of the product and also to validate satisfactory operation after extended storage.

  • Auxiliary Options

    RELiTE can be expanded for additional functionality. This includes alternative output voltage modules and interface modules for other related systems.


    At present, a 12V output module is available.
